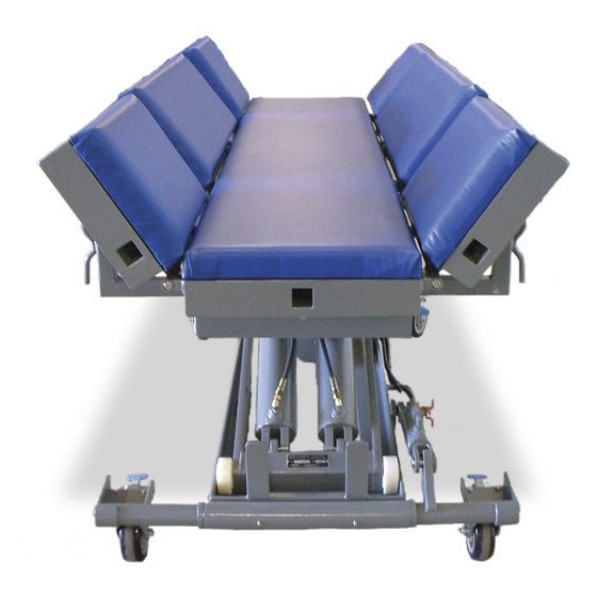

SHANKS Dorsal/Lateral Cylinder Base Equine Table


The Table is equipped with 4-way tilt capability with hydraulic system includes a total of eight hydraulic cylinders that work individually & in pairs, to provide this versatile 4-way tilt capability. This model can achieve Trendelenburg positioning via hydraulics. The table can be put in a stationary position by extending the four lower cylinders, & lifting the table base frame off the casters. The casters must be removed to achieve the lowest operating height.

  • Self-contained power unit with Hand Control Hydraulic Valve
  • 4-way tilt capability
  • 46″ x 84″ Lateral Surface Area
  • 18″ x 84″ Centre Bed
  • Versatile Multi-Section Table Top Surface
  • Lowered height 22½
  • Raised Height 39″
  • 6″ Swivel Casters
  • Hot Dip Galvanized/Painted Coating on Structural Frame
  • 1100KG Capacity
