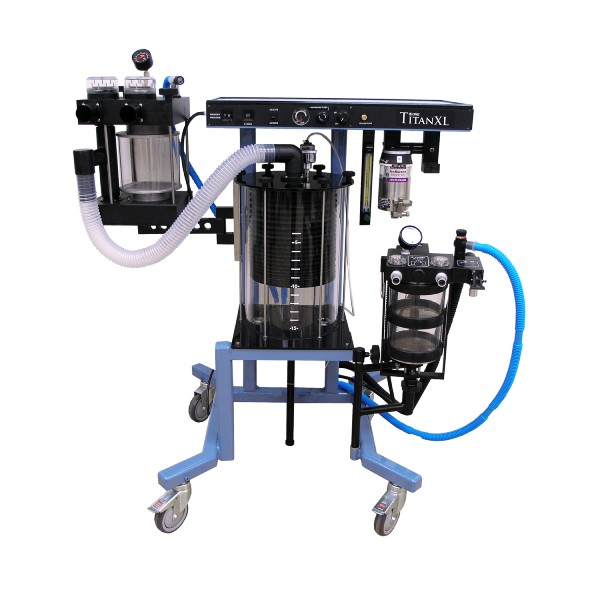

Titan XL

Titan XL is a complete large animal anaesthesia support system. The system can be used for spontaneous breathing, or the user may utilize the AVE ventilator, which is an electronically controlled, time-cycled, pneumatically driven anaesthesia ventilator capable of delivering from ½L to 15L of tidal volume at 1 to 99 breaths per minute & I to E ratios from 1 to 2 to 1 to 4.5.

Electrical : 220V to 240V
On/Off Switch : Provides AC Power to AVE Vent
Tidal Volume : Motor Driven Adjustable Tidal Volume
Ventilator : Time-cycled, Electrically Controlled, Pneumatic Powered
Frequency Control : 0BPM to 99BPM in 1BPM increments
Inspiratory/Expiration Ratio : 1:1, 1:1.5, 1:2, 1:2.5, 1:3, 1:3.5, 1:4, 1:4.5
Inspiratory Flow : Controlled through operator adjustable regulator
Circuit Pressure Gauge : -20cm/H2) to 80 cm/H2)
APL Valve : Allows control from completely closed to fully open
Insp./Exp. Ports : Flow controlled through visible check valves
